A DIY gold processing plant is a home-built setup that takes raw pay dirt, gravel, or crushed ore and separates the gold from everything else, without a commercial mill.
For a small-scale prospector, that usually means a portable rig you can run in the backyard or haul to the creek: a classifier to size the material, a sluice or concentrator to catch the gold, and a final cleanup stage to pull clean gold from black sand.
With gold near $4,000 per troy ounce, even a modest recovery setup pays for itself fast, and most of it you can build from hardware-store parts.
This covers how the pieces fit together, how to build a workable processing line on a budget, and how to finish your concentrate safely at home.
None of this requires the toxic chemistry that big commercial operations use. Good small-scale recovery is almost entirely mechanical: gravity, water, and screen sizes doing the work.
TL;DR
- A DIY gold processing plant is a staged setup: classify, concentrate, then clean up, each stage feeding the next.
- Classifying first is the biggest efficiency gain, since sized material runs cleaner through a sluice or concentrator.
- A homemade sluice box with the right riffles and matting is the core recovery tool for placer gold.
- A recirculating setup (pump, tub, sluice) lets you process buckets of dirt anywhere, no stream needed.
- Hardrock ore needs crushing to sand-size before it ever reaches the sluice.
- Final cleanup uses a small sluice, a gold pan, and gravity to separate gold from black sand, no mercury or cyanide.
- Keep it mechanical and legal: check permits and claim status before you dig anything.
How a Small-Scale Processing Plant Works
Every processing plant, from a backyard rig to an industrial mill, runs the same three stages in the same order.
First you classify, sorting the raw material by size so the big rocks are gone and what’s left is small enough to process. Then you concentrate, running that sized material through a device that uses gravity to trap the heavy gold while the lighter waste washes away. Finally you clean up, taking the small pile of heavy concentrate and separating clean gold from black sand.
The reason to keep these as separate stages is efficiency. A sluice box choked with fist-sized rocks loses fine gold. A concentrator fed clean, sized sand catches far more.
For a DIY plant, each stage is a piece of gear you can build or buy cheaply:
| Stage | Job | DIY Tool |
|---|---|---|
| Classify | Remove oversized rock, size the material | Screen classifier over a bucket |
| Concentrate | Trap heavy gold, wash away light waste | Sluice box or wheel concentrator |
| Clean up | Separate clean gold from black sand | Mini sluice and gold pan |
Get the order right and even a cheap setup recovers well. Skip classifying and even good gear underperforms.
Stage One: Classifying Your Material
Classifying is the step beginners skip and pros never do, because it’s where the efficiency is won or lost.
A classifier is a screen with a set mesh size that sits over a bucket. You shovel material in, add water, and work it through. Anything bigger than the screen stays on top and gets tossed. Everything smaller drops through, ready for the next stage.
Mesh size is measured by openings per inch. Larger numbers mean finer screens:
- 1/2 inch mesh: first pass, knocks out the big rocks over a 5-gallon bucket.
- 4 to 8 mesh: removes coarse gravel and stones.
- 20 mesh: sizes material down for general sluicing.
- 50 to 100 mesh: fine classification for fine-gold recovery.
The smart move is a stackable set that goes coarse to fine, so you sort in stages. Sizing material this way means your sluice runs cleaner and your black-sand cleanup at the end is far less work.
If you want to go deeper on this stage, matching mesh to the gold you’re chasing is the whole game with gold classifiers and it directly sets how well the rest of your plant performs.
Stage Two: Building the Sluice Box

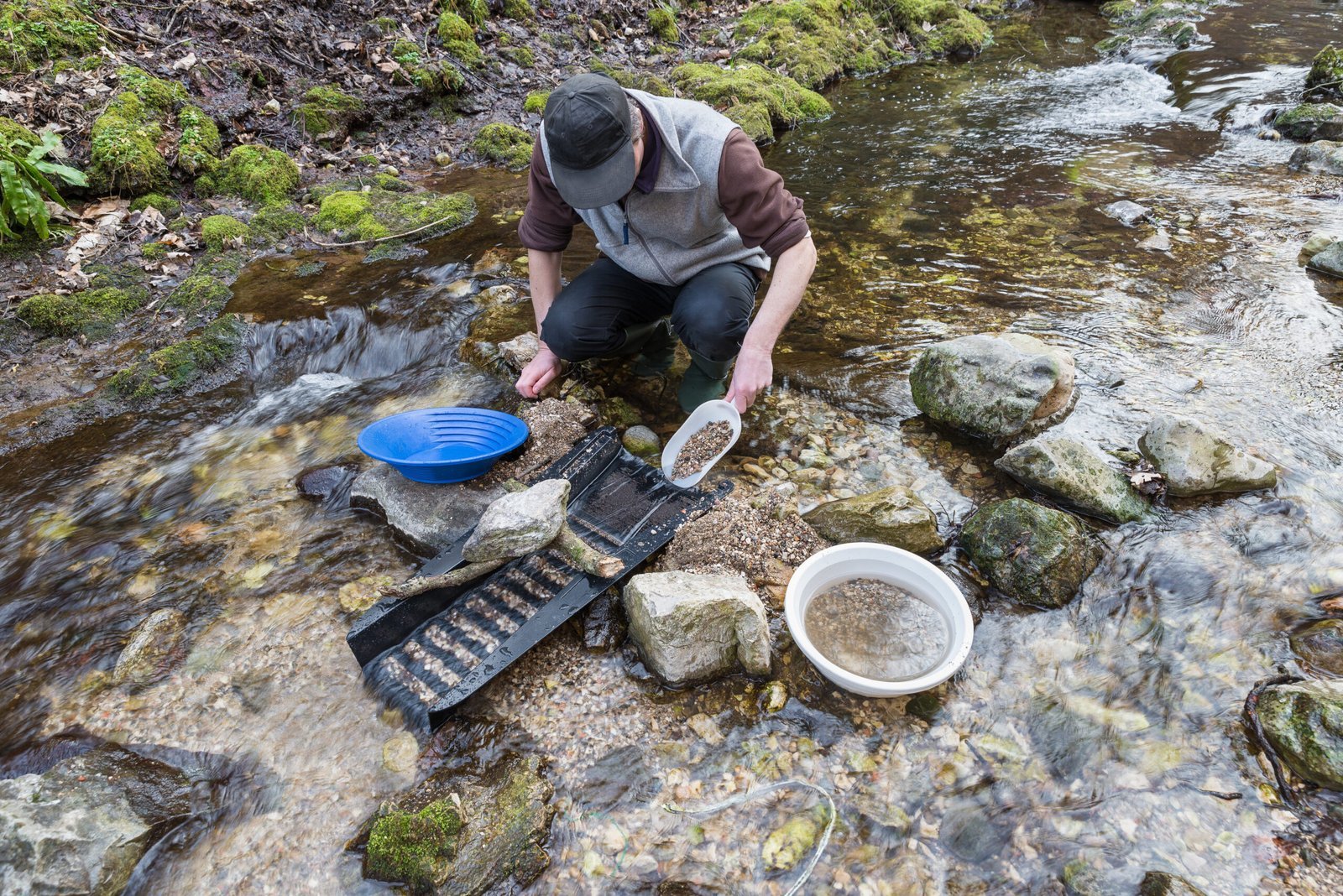

The sluice box is the heart of a placer DIY gold processing plant. It’s a long, open channel that water runs through, lined with riffles and matting that trap gold while the light stuff washes out the end.
You can buy one for $40 to $150, but a basic sluice is a straightforward build. Here’s the standard approach:
- Start with a channel. A length of aluminum gutter, a plastic downspout, or a wooden box roughly 8 to 12 inches wide and 3 to 4 feet long works.
- Add riffles. These are ridges set crosswise every couple of inches that create low-pressure pockets where gold drops out. Aluminum angle stock, cut and screwed in perpendicular to the flow, does the job.
- Lay matting under and between the riffles. Ribbed rubber matting or miner’s moss catches the finest gold that riffles alone miss.
- Set the slope. Aim for about 1 inch of drop per foot of length. Too flat and material piles up; too steep and gold blows straight through.
- Set the water flow. You want enough current to move sand and keep the box clear, but slow enough that gold has time to settle. Watch the riffles: material should tumble and clear, not race.
Feed classified material in slowly at the top, a scoop at a time, letting each batch clear before the next. Rushing the feed is the fastest way to lose gold out the tail.
Riffle spacing and matting choice matter more than most people expect. The details of sluice box efficiency come down to matching flow, slope, and riffle design to the size of gold you’re catching.
Recommended Reading
Stage Two, No Stream Needed: A Recirculating Setup
The best thing about a DIY plant is that you can run it in your backyard, far from any creek, by recirculating your own water.
The parts are simple:
- A tub or container to hold water at the bottom, positioned to catch the sluice runoff.
- A small submersible or bilge pump (a 12-volt bilge pump running off a battery is common) to lift water from the tub back up to the top of the sluice.
- A hose from the pump to the sluice head, feeding a steady flow.
- Your sluice angled so its tail drains back into the tub.
Water cycles: pump lifts it to the top, it runs down the sluice, drains back into the tub, and gets pumped again. You add classified material at the head and top off water as it splashes out.
This turns a bucket of pay dirt into a processing operation on a patio. It’s how a lot of people work backyard dirt, cleanup material, or gravel hauled home from a claim. A recirculating rig is one of the most useful pieces of DIY gold mining equipment you can put together for under a hundred dollars.
Alternative Concentrators: Wheels and Spirals
Beyond the sluice, two other gravity concentrators show up in DIY plants, both good at catching fine gold that a sluice can lose.
A spiral wheel concentrator is a slowly rotating pan with a spiral groove. Fed a slurry of fine material, the spiral walks heavy gold up to a center hole while light waste washes back out. They’re excellent for cleaning fine gold from concentrate and can be built from a plastic pan, a small gear motor, and patience.
A blue-bowl concentrator uses a controlled upflow of water in a ribbed bowl. Set the flow right and it lifts light black sand up and over the edge while gold stays trapped in the bottom ribs. It’s a cleanup tool, not a bulk processor, but it’s very good at what it does.
Both shine in the final stages, taking concentrate that’s already mostly heavies and pulling clean gold out of it. For bulk processing, the sluice does the heavy lifting; for finishing, a wheel or bowl earns its place.
Processing Hardrock Ore: Crushing First
Everything above assumes placer gold, loose flakes and grains already freed from rock by nature. Hardrock ore is different: the gold is locked inside quartz or sulfide rock and has to be freed before any sluice can catch it.
That means crushing. Small-scale prospectors use a few approaches:
- Hand crushing: break ore with a hammer inside a heavy steel pipe or on a steel plate, then grind the pieces smaller. Slow, but it works for small samples.
- A homemade mortar and pestle from thick steel, for reducing crushed pieces to sand.
- A rock crusher or small impact mill for anyone doing this regularly, which pulverizes ore to sand-size in one pass.
The goal is to get the ore down to roughly sand consistency, fine enough that the gold particles are freed from the host rock. Once you’ve crushed to that point, you classify and run it through your sluice or concentrator exactly like placer material.
A word of caution: crushing rock throws sharp fragments and fine dust. Wear eye protection and a dust mask, since some ore dust (especially from sulfides or silica-rich quartz) is genuinely bad to breathe. Crush outdoors or in a well-ventilated space.
Stage Three: Cleaning Up Your Concentrate
After running material, you’re left with a small pile of concentrate: mostly heavy black sand (magnetite and other iron minerals) with your gold mixed in. The final stage separates the two.
Several simple methods work, and most people use a combination:
- A magnet: sweep a strong magnet over dried concentrate to pull out magnetite black sand. Gold isn’t magnetic and stays behind. A magnet inside a plastic bag makes cleanup easy, just lift it out and release the collected sand away from your gold.
- A gold pan: the classic finish. Swirl concentrate and water so the light sand washes off the edge and gold settles in the bottom. Patience here recovers the fine stuff.
- A blue bowl or spiral wheel: for larger amounts of concentrate, these do the fine separation faster and with less lost gold than hand panning.
What you should not use at home is mercury or cyanide. Commercial operations sometimes use those under strict controls, but for a DIY prospector they’re dangerous, often illegal to use casually, and completely unnecessary. Gravity separation gets clean gold without any of that risk.
If you’re chasing very fine gold that keeps escaping, the techniques in mastering fine gold recovery are worth studying, since flour gold behaves differently than flakes and needs a gentler hand.
Staying Legal and Responsible
Before you process anything, know where the material came from and whether you had the right to dig it.
On most public land, recreational panning and sluicing of loose placer material is allowed, but rules vary by agency and location, and many areas require a permit or restrict motorized equipment. Claimed ground belongs to the claim holder, and digging there without permission is theft.
Check with the managing agency, whether that’s the Bureau of Land Management, the Forest Service, or a state office, before you start. The resources below point you to the official sources.
Responsible processing also means leaving the site as you found it: fill your holes, don’t muddy the whole creek, and don’t dump processed tailings where they’ll wash back in. Small-scale, mechanical, gravity-based recovery has a light footprint if you’re careful, which is part of why it’s the right approach for a home operation.
Resources for DIY Gold Processing
- BLM Mining and Minerals – federal rules on prospecting, claims, and permits on public land.
- USFS Minerals and Geology – Forest Service guidance on recreational mineral collection and equipment rules.
- USGS Gold Statistics and Information – geology and background on where gold occurs.
- Gold Prospectors Association of America (GPAA) – claims access, equipment guidance, and small-scale mining resources.
- TreasureNet Forum – community build threads for sluices, concentrators, and recirculating rigs.
Putting Your Plant Together
Start small and add stages as you go. A classifier, a sluice, and a gold pan is a complete processing line, and it’ll recover placer gold as well as most beginners need.
From there, add a recirculating tub and pump so you can work anywhere, then a wheel or bowl concentrator for cleaner fine-gold recovery. If you’re working hardrock, a crusher goes on the front end.
The whole thing stays mechanical, cheap, and safe: gravity and water doing the separating, no toxic chemistry, most parts from a hardware store.
Build it in stages, size your material well, feed slowly, and a DIY gold processing plant will turn raw dirt into clean gold right in your own backyard.
Frequently Asked Questions – DIY Gold Processing Plants
What do I actually need to build a basic gold processing plant?
At minimum, a classifier (screen over a bucket), a sluice box, and a gold pan. That three-piece line will classify, concentrate, and clean up placer material. Add a pump and tub for a recirculating setup so you can run it anywhere.
Can I run a processing plant in my backyard without a stream?
Yes. A recirculating setup uses a small pump to cycle water from a tub up through your sluice and back down. You feed in classified dirt and top off water as it splashes out. It’s how a lot of people process material hauled home.
Why is classifying so important?
Sized material runs far more cleanly through a sluice or concentrator, so you catch more gold and lose less. A sluice full of large rocks loses fine gold, while a screen that removes oversize first lets the gravity separation actually work.
Do I need chemicals like mercury or cyanide?
No, and you shouldn’t use them at home. Small-scale recovery is entirely mechanical: gravity, water, screen sizes, and magnets. Mercury and cyanide are dangerous, often restricted, and unnecessary for the fine and flake gold most prospectors find.
How do I process hardrock ore instead of loose gravel?
Hardrock ore has to be crushed to sand consistency first to free the gold from the rock, using a hammer and steel pipe for small amounts or a crusher for regular work. After crushing, you classify and sluice it exactly like placer material.
How do I get clean gold out of black sand?
Use a strong magnet to pull out magnetite, then finish with a gold pan, blue bowl, or spiral wheel. Gold isn’t magnetic and is much denser than the sand, so a magnet plus careful gravity separation leaves clean gold behind.
How much does a DIY processing plant cost to build?
A basic classifier, homemade sluice, and pan can come together for well under $100 using hardware-store parts. A recirculating pump and tub add a bit more. Crushing gear for hardrock is the main step-up in cost.
Do I need a permit to process gold I’ve dug?
It depends on where you dug it. Recreational panning and sluicing is allowed in many areas but restricted or permitted in others, and claimed ground belongs to the claim holder. Check with the BLM, Forest Service, or your state office before you dig.
